Hasegawa 1/1500 Sace Pirate Battleship Arcadia 31 (Finish.......?)

 The goal of this project is coming : )

 Today, the Arcadia will be set to the stand.



f:id:mata1:20161001113943j:plain

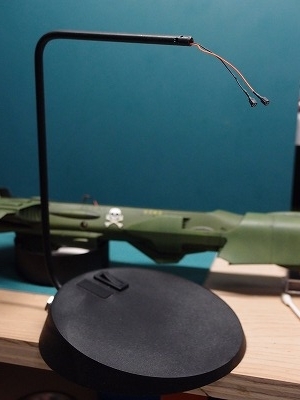

 I am sure, no one remember the stand.

mata1.hatenadiary.jp



 I tried to mount Arcadia onece, so it shoud be no problem. But since I put all LED and fibers, it is very crowded inside of the ship. I need to be very very carefull to mount the ship and connect power cable.

f:id:mata1:20180714161430j:plain

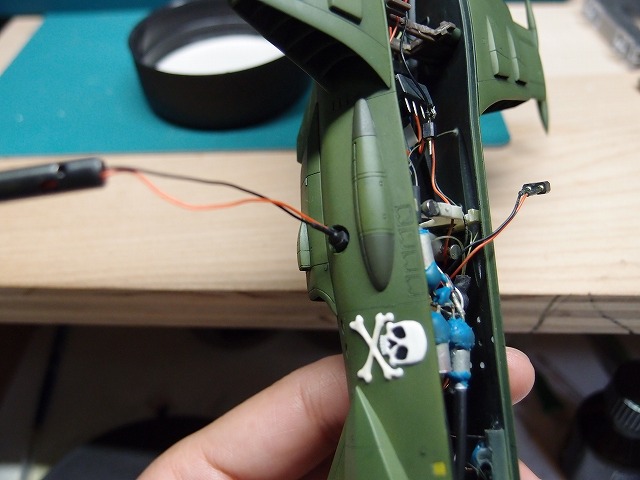

Let through the wires into the ship,,,Be careful,,,





f:id:mata1:20180714161505j:plain

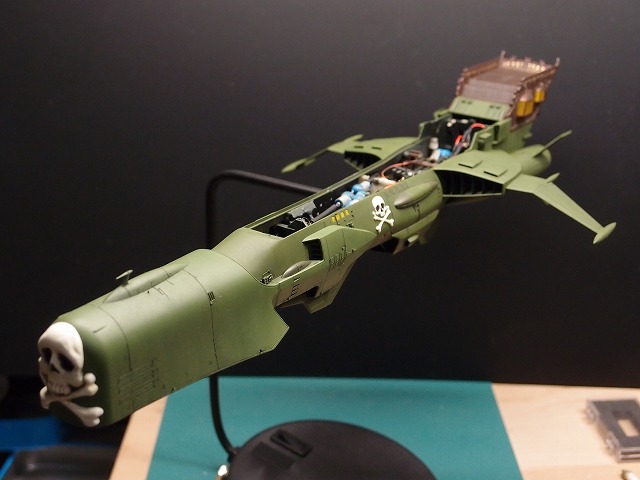

The ship is attached to the stand safely.





 Next, I attached the deck and the bridge to the Hull. And, I attached 2nd bridge on the main bridge.

f:id:mata1:20180714161534j:plain

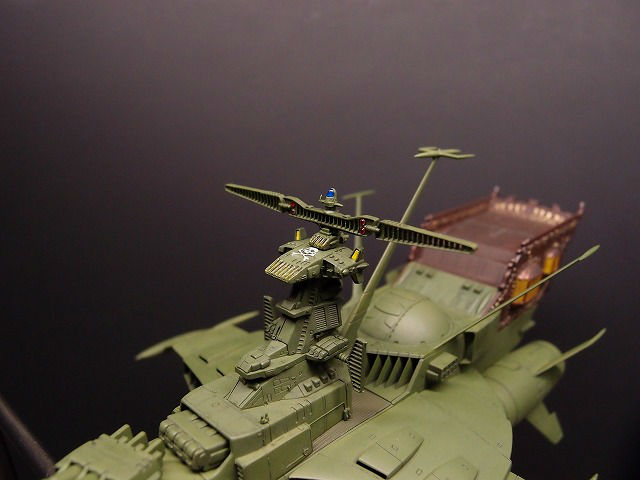

 In the kit, the antenna extends horizontally from sight chamber. But in the reference sheets, I see very tiny antenna extend forward then go up.

 I attached it, but it is too small and hard to see even in the picture.(the actual kit is much small than the picture)

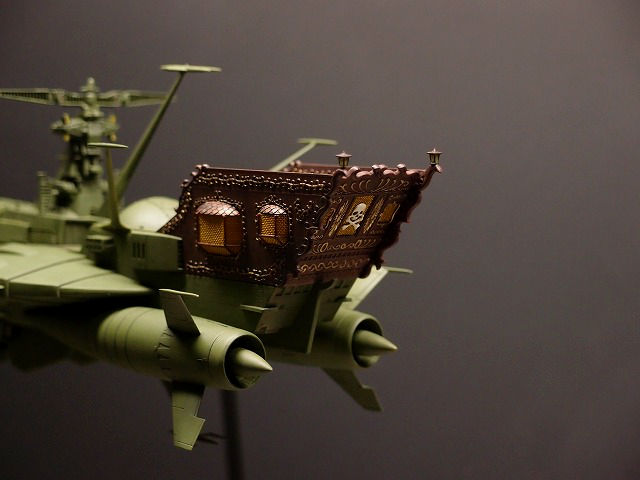

Then,,,  lanthanums are attached on the rear deck.

f:id:mata1:20180714161717j:plain



 Finally, do I finish?

 no, I have one more pats left.

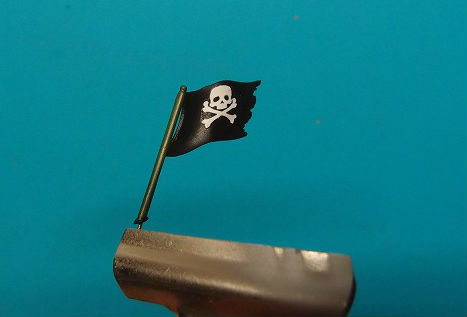

 It is a Pirate flag. The part with the kit made with plastics is a little too thick. I ground to make it thinner. then paint with black, put decal.

f:id:mata1:20180714161905j:plain

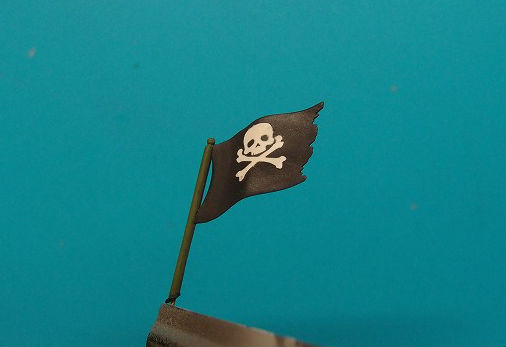

 After paint, I spray very thin layer with wood brown color fo aging.

f:id:mata1:20180714161933j:plain



 a tiny hall was made on the rear deck and pole, then put small brass rod in between them and flag is attached.

f:id:mata1:20180714162007j:plain

 Finally, all parts is assembled and done.



 I thought.



 Next,

 I am going to do a little modification for someting,,,







Hasegawa 1/1500 Sace Pirate Battleship Arcadia 30 (Weathering)

 Finally,  I am starting weathering. This is the final stage of this project.

 But, this kit is 1/1500 of scale. If I do weathring too much, the kit looks just looking good toy. I would like to make ths ship looks like prop of some Si-fi movies.

 Any way, let's start.



 I used Dark yellow for washing on Skull part. After wash, add some black pin wash at deep area and add some black shade around eye hole.

f:id:mata1:20180428153742j:plain

f:id:mata1:20180428153752j:plain



 I did it to two small skull as well.

f:id:mata1:20180428153812j:plain



 I did not use black paint for green area. I think it is too much contrast. I used darker green for washin.

f:id:mata1:20180428153830j:plain

f:id:mata1:20180428153848j:plain



 I add Raindrop marks for entire ship, but again, it is very thin and hard to see at picture.

f:id:mata1:20180428153855j:plain

 you may see color of green area is irregularity,  because I did some pretreatment when I paint gray for base paint.

mata1.hatenadiary.jp



 It is very simple, but there is some difference after weathered.



Next,,,

I will mout Arcadia to the base stand.

Hasegawa 1/1500 Sace Pirate Battleship Arcadia 29 (Final assembly)

 Today, I do final assembly, and connect all electrical parts and fiber optic.



 Attach the bow part to the hull.

f:id:mata1:20160812165228j:plain

 I have 2 led in the bow. I pass the wiring through the hole in the hull, carefully. If I break fiber optic,,, I do not want to think about it...



f:id:mata1:20160812165231j:plain

 The entire shape of the ship is now visible.

 Very small white srings is fiber optic.



 I bond the bridge to the deck after painting skull on the bridge.

f:id:mata1:20160812165402j:plain

  This section has some fiber optic, too. I need to put those into LED.



  I set LED to aluminum pipe, and fill in glue gun to the opening of the pipe. After hot glue is cool down, I put small aluminum pipe to the center of the LED pipe. I put optic fiber into the small aluminum pipe. I think I can stop any reaking of the light.

 I can not express well, so please see my hand drawing below.

f:id:mata1:20170830173530j:plain

f:id:mata1:20160812165256j:plain

 alll fiber optic is going into LED.



 In case if I will need to repair the electrical unit when I have any problem, I made a main deck removable.

f:id:mata1:20170830173907j:plain

  I set some magnet under the deck, and set nail head on the main body at appropriate position.



 Oh my,,, It is sooo crowded.

f:id:mata1:20160812165347j:plain

 carefully,,,carefully,,,



 done!

f:id:mata1:20160812165419j:plain



 Still need to some work, but it is close.





 Next,

 I will weather! (my favorite work!! :D )





Hasegawa 1/1500 Sace Pirate Battleship Arcadia 28 (Paint start!)

 Finally, I began painting Arcadia.

 I painted the deck first.Because it seemed easy for me to masking.

f:id:mata1:20160705162721j:plain

 I paint the Deck using the paint that  was made by mixing Mr. Color 340( Field Green FS 34097) with black, green, red etc while watching the appearance.

 Once it dried, mask it and paint the basic color with the other parts.

f:id:mata1:20160705162728j:plain



 Although there is no instruction in the manual,it seems that the bulge-like part beside the hull is also painted two different colors.

f:id:mata1:20160705162741j:plain



 Just a little difference.

f:id:mata1:20160705162825j:plain



 Then, next step is painting of skull.

 I just paint it white, but I painted  a little yellowish white at the end.

f:id:mata1:20160717125119j:plain

 (but it is a little bluish white in the picture)



 Then, I put black color on the bow.

f:id:mata1:20160717125405j:plain

 This is goint to be a black part in the eye area of the skull.

f:id:mata1:20160717125455j:plain



 I painted The part of the eaves that sticks over the window beside the cabin with flat black, then painted copper useing dry-brush technique.

f:id:mata1:20160717125636j:plain



 Next, connect all the optical fiber to the LED, and assemble the whole kit to check.

Hasegawa 1/1500 Sace Pirate Battleship Arcadia 27 (Electrical work)

 It was already long time ago, I finished base coat paint. Before I start painting, I have to finish electrical work.

 First, I attached the optical fiber.  If I attached the fiber before I did base coat, there is some risks to break the fiber, so I decided that I attach them after finish base coat.

 Also, I soldered all wires, connetting all LED, Arduino and AtTiny85.

f:id:mata1:20160611165906j:plain

 I needed to solder the wires at very tight space. It was a very nervous job, because I could  not touch irons to fiber or basecoat at all.



 After attach all optic fiber, LED and Arduino, connect battery and checked whether all the LEDs are lit.

f:id:mata1:20160614164325j:plain

 It seems that it works well.





Next,  start painting, finally.

Hasegawa 1/1500 Sace Pirate Battleship Arcadia 26 (3rd coating)

 Following the last time, it is the base paint.

 On the second layer of gray, I did  panel masking again.

f:id:mata1:20160516080118j:plain

f:id:mata1:20160516080124j:plain

f:id:mata1:20160516080130j:plain

 After finish masking, paint the gray of the third layer. Then, after the third layer gray is dry, peel off all of the masking.

f:id:mata1:20160518164601j:plain

f:id:mata1:20160516080517j:plain

f:id:mata1:20160516080527j:plain

f:id:mata1:20160516080536j:plain

 Now, painting the undercoat has been done.



 The next step is to the electrical work before final painting.

Hasegawa 1/1500 Sace Pirate Battleship Arcadia 25 (base paint 1st and 2nd coating)

 Finally fabrication of Arcadia will enter the base painting. This time, I will paint several times of the layer for base using gray with different darkness. When stacking a layer, by masking as of the exterior panel every time, to represent the seam of the armor.

 It was painted black for light shielding.I painted the first layer of gray on it.

f:id:mata1:20160502160317j:plain

 I gave a mottled to the vertical stripes.

f:id:mata1:20160502160324j:plain

f:id:mata1:20160502160328j:plain

f:id:mata1:20160502160332j:plain

 Prior to the application of the second layer of gray,  I did panel masking.

f:id:mata1:20160502160631j:plain

f:id:mata1:20160502160635j:plain

 A second layer of gray was painted.

f:id:mata1:20160502160640j:plain

f:id:mata1:20160502160646j:plain

f:id:mata1:20160502160650j:plain



 that is all for today,



 The following is another panel masking, and  paint a third layer of gray.
